产品特性：力通用测试	品牌：lireach	型号：lc-4300
传感器类型：工业级6轴力传感器	工作力：6000N	精度：非线性迟滞小于0.5% F.S
输出类型： 485 以太网 422	安装类型：法兰

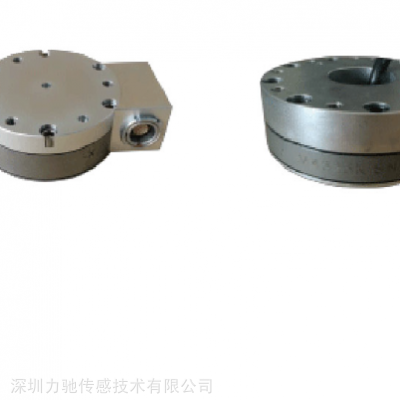

M43XX系列为工业级6轴力传感器，该类传感器提供3 - 10倍过载保护功能，IP65防护等级，内置低噪声放大器。M43XX系列非线性、迟滞小于0.5%F.S，串扰小于3%F.S。

型号	描述	量程范围(N/Nm)				尺寸(mm)			重量 (kg)
型号	描述	FX,FY	FZ	MX,MY	MZ	OD	Height	ID	重量 (kg)
M4313A	SIX AXIS CIRCULAR LOAD CELL, D85MM F100N, ANALOG OUTPUT	100	200	8	8	85	26.5	*	0.23
M4313A1	SIX AXIS CIRCULAR LOAD CELL, D85MM F100N	100	200	8	8	85	26.5	*	0.23
M4324R	SIX AXIS CIRCULAR LOAD CELL, COUPLED D90MM F1250N	1250	1250	250	250	90	25.7	35	0.78
M4325B	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F200N,ANALOG OUTPUT, IP64	200	400	20	20	91	36	*	0.77
M4325BT1	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F200N, DIGTAL OUTPUT, IP64	200	400	20	20	91	36	*	0.77
M4325K	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F200N, ANALOG OUTPUT, IP65	200	400	20	20	91	31	32	0.56
M4325K1	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F200N, ANALOG OUTPUT, IP65	200	400	20	20	91	31	32	0.56
M4325M	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F400N, ANALOG OUTPUT, IP65	400	800	40	40	91	31	32	0.56
M4325M1	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F400N, ANALOG OUTPUT, IP65	400	800	40	40	91	31	32	0.56
M4325R	THREE AXIS CIRCULAR LOAD CELL D100MM FZ4000N	3000	4000	NA	NA	100	30	*	1.30
M4325S	THREE AXIS CIRCULAR LOAD CELL D100MM FZ2000N	2000	2000	NA	NA	100	30	*	1.30
M4336A	SIX AXIS CIRCULAR LOAD CELL, COUPLED D91MM F130N	130	130	9	9	91	37.2	*	0.59
M4344A	SIX AXIS CIRCULAR LOAD CELL,COUPLED D180MM F400N, AMP	400	400	50	50	180	37.2	85	1.60
M4344B	SIX AXIS CIRCULAR LOAD CELL, COUPLED D180MM F800N, AMP	800	800	120	120	180	37.2	85	3.10
M4344B9	SIX AXIS CIRCULAR LOAD CELL, COUPLED D180MM F800N	800	1600	120	120	180	37.2	85	4.0
M4344C	SIX AXIS CIRCULAR LOAD CELL, COUPLED D180MM F1600N, AMP	1600	1600	240	240	180	37.2	85	3.10
M4344D	SIX AXIS CIRCULAR LOAD CELL, COUPLED D180MM F3200N, AMP	3200	3200	480	480	180	37.2	85	3.10
M4344D6	SIX AXIS CIRCULAR LOAD CELL, COUPLED D180MM F4500N, AMP	4500	4500	700	700	180	37.2	85	3.10
M4347B	SIX AXIS CIRCULAR LOAD CELL, COUPLED D280MM F4000N, AMP	4000	4000	800	800	280	51	*	9.9
M4347D	SIX AXIS CIRCULAR LOAD CELL, COUPLED D280MM F15000N, AMP	15000	30000	6000	6000	280	51	*	9.90
M4347K	SIX AXIS CIRCULAR LOAD CELL, COUPLED D280MM F6000N, AMP	6000	12000	2500	2500	280	51	*	9.90
M4347K1	SIX AXIS CIRCULAR LOAD CELL, COUPLED D280MM F6000N, AMP	6000	12000	2500	2500	280	51	*	9.90
M4347M	SIX AXIS CIRCULAR LOAD CELL, COUPLED D280MM F15KN, AMP	15000	30000	6000	6000	280	51	*	9.90
M4341A	SIX AXIS CIRCULAR LOAD CELL, 60 × 60MM F9N	9	10	0.3	0.15	60	15	*	0.1
M4341B	SIX AXIS CIRCULAR LOAD CELL, 60 × 60MM F13N	13	20	1.2	0.6	60	15	*	0.1
M4341C	SIX AXIS CIRCULAR LOAD CELL, 60 × 60MM F25N	25	50	2.5	2.5	60	15	*	0.1
M4313M1A	6 AXIS LC D77MM F50N ,DIGITAL RS485 & RS232	50	50	4	4	77	26.5	*	0.23
M4313M1B	6 AXIS LC D77MM F50N ,DIGITAL ETH TCP & RS232	50	50	4	4	77	26.5	*	0.23
M4313M2A	6 AXIS LC D77MM F100N ,DIGITAL RS485 & RS232	100	100	8	8	85	26.5	*	0.23
M4313M2B	6 AXIS LC D77MM F100N ,DIGITAL ETH TCP & RS232	100	100	8	8	85	26.5	*	0.23
M4313M4A	6 AXIS LC D77MM F250N ,DIGITAL RS485 & RS232	250	250	24	24	95	28.5	*	0.36
M4313M4B	6 AXIS LC D77MM F250N ,DIGITAL ETH TCP & RS232	250	250	24	24	95	28.5	*	0.36
M4344T2	6 AXIS ROBOT BASE LC D190MM F1600N	1600	1600	450	450	190	48	*	6.2
M4344T2C	6 AXIS ROBOT BASE LC D190MM F1600N, ETH UDP	1600	1600	450	450	190	48	*	6.2
M4344T3	6 AXIS ROBOT BASE LC D190MM F1600N，CABLE OUTPUT	1600	1600	450	450	190	48	*	6.2
M4344T4	6 AXIS ROBOT BASE LC D190MM F1000N	1000	1000	250	250	190	48	*	6.2
