产品特性：扭矩测量	品牌：lireach	型号：lc-2200
传感器类型：扭矩测量	工作力：20NM至300NM	精度：非线性迟滞小于0.5% F.S
输出类型： 485 以太网 422	安装类型：法兰

型号	描述	量程范围(N/Nm)				尺寸(mm)			重量 (kg)
型号	描述	FX,FY	FZ	MX,MY	MZ	OD	Height	ID	重量 (kg)
M2210A	SINGLE AXIS TORQUE LOADCELL D53MM, 50Nm	NA	NA	NA	50	53	7	13	0.09
M2210A1	SINGLE AXIS TORQUE LOADCELL D53MM, 50Nm	NA	NA	NA	50	53	7	13	0.09
M2210A2	SINGLE AXIS TORQUE LOADCELL D53MM, 100Nm	NA	NA	NA	100	53	7	13	0.09
M2210A3	SINGLE AXIS TORQUE LOADCELL D78MM, T50NM	NA	NA	NA	50	78	9	13	0.20
M2210A4	SINGLE AXIS TORQUE LOADCELL D78MM, 50Nm	NA	NA	NA	50	53	7	13	0.09
M2210A9	SINGLE AXIS TORQUE LOADCELL D53MM, 50Nm	NA	NA	NA	50	53	7	13	0.09
M2210B	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	8	27	0.37
M2210B1	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	8	27	0.37
M2210B2	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	8	27	0.37
M2210B3	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	8	27	0.37
M2210B4	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	8	27	0.37
M2210B5	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	250	100	26.2	27	0.96
M2210B6	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	100	100	8	27	0.37
M2210B7	SINGLE AXIS TORQUE LOADCELL D100MM, 250Nm	NA	NA	NA	100	100	8	27	0.37
M2210C	SINGLE AXIS TORQUE LOADCELL D80MM, 100Nm	NA	NA	NA	100	80	7	20	0.18
M2210C1	SINGLE AXIS TORQUE LOADCELL D80MM, 100Nm	NA	NA	NA	100	80	7	20	0.18
M2210C2	SINGLE AXIS TORQUE LOADCELL D80MM, 150Nm	NA	NA	NA	150	80	7	20	0.18
M2210C3	SINGLE AXIS TORQUE LOADCELL D80MM, 150Nm	NA	NA	NA	150	80	7	20	0.18
M2210C4	SINGLE AXIS TORQUE LOADCELL D80MM, 100Nm	NA	NA	NA	100	80	7	20	0.18
M2210C5	SINGLE AXIS TORQUE LOADCELL D80MM, 100Nm	NA	NA	NA	100	80	7	20	0.2
M2210C6	SINGLE AXIS TORQUE LOADCELL D111MM, 100Nm	NA	NA	NA	100	110	7	20	0.3
M2210C7	TORQUE SENSOR D82MM T150NM	NA	NA	NA	150	82	7	20	0.18
M2210C8	TORQUE SENSOR D82MM T150NM	NA	NA	NA	150	82	7	15	0.21
M2210C9	SINGLE AXIS TORQUE LOADCELL D80MM, T100NM	NA	NA	NA	100	80	7	20	0.18
M2210C10	TORQUE SENSOR D108MM T250NM	NA	NA	NA	250	108	8	32	0.38
M2210C11	TORQUE SENSOR D70MM T70NM	NA	NA	NA	70	70	7	16	0.16
M2210C12	TORQUE SENSOR D108MM T250NM	NA	NA	NA	250	108	8	22	0.45
M2210C13	TORQUE SENSOR D70MM T50NM	NA	NA	NA	50	70	7	16	0.16
M2210D	SINGLE AXIS TORQUE LOADCELL D100MM, T300NM	NA	NA	NA	300	100	8	14	0.38
M2210E	SINGLE AXIS TORQUE LOADCELL D53MM, T60NM	NA	NA	NA	60	53	7	13	0.09
M2210E1	TORQUE SENSOR D53MM T60NM	NA	NA	NA	60	53	8	10	0.09
M2210F	SINGLE AXIS TORQUE LOADCELL D53MM, T30NM	NA	NA	NA	30	53	7	13	0.09

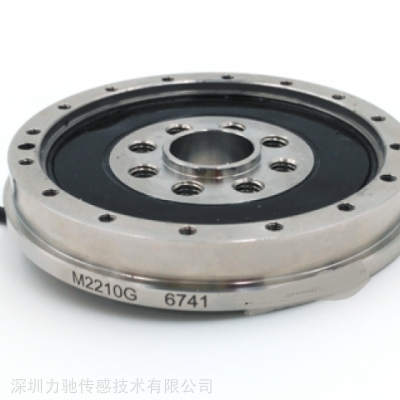

M2210G	SINGLE AXIS TORQUE LOADCELL D84MM, 150NM, OIL SEAL	NA	NA	NA	150	84	12.5	*	0.32
M2210G2	SINGLE AXIS TORQUE LOADCELL D84MM, 150NM, OIL SEAL	NA	NA	NA	150	84	12.5	17	0.32
M2210G3	SINGLE AXIS TORQUE LOADCELL D80MM, 180NM, OIL SEAL	NA	NA	NA	180	80	12.5	20	0.32
M2210G5	SINGLE AXIS TORQUE LOADCELL D84MM, 150NM, HIGH BENDING STINFFNESS, OIL SEAL	NA	NA	NA	150	84	24.9	17	0.69
M2210G6	SINGLE AXIS TORQUE LOADCELL D84MM, 150NM, OIL SEAL	NA	NA	NA	150	84	12.5	17	0.32
M2210G7	SINGLE AXIS TORQUE LOADCELL D84MM, 180NM, OIL SEAL	NA	NA	NA	180	84	12.5	20	0.30
M2210H	SINGLE AXIS TORQUE LOADCELL D53MM, T50NM	NA	NA	NA	50	53	7	13	0.09
M2210L	SINGLE AXIS TORQUE LOADCELL D53MM, T60NM	NA	NA	NA	60	53	7	13	0.09
M2210M	SINGLE AXIS TORQUE LOADCELL D53MM, T20NM	NA	NA	NA	20	53	7	13	0.09
M2210M1	SINGLE AXIS TORQUE LOADCELL D68MM, T20NM	NA	NA	NA	20	68	7	13	0.15
M2210M2	SINGLE AXIS TORQUE LOADCELL D78MM, T20NM	NA	NA	NA	20	78	7	13	0.2
M2210N	SINGLE AXIS TORQUE LOADCELL D62MM, T50NM	NA	NA	NA	50	62	7	12	0.14
M2210N1	SINGLE AXIS TORQUE LOADCELL D62MM, T50NM	NA	NA	NA	50	62	7	12	0.14
M2210N2	SINGLE AXIS TORQUE LOADCELL D62MM, T150NM	NA	NA	NA	150	62	7	12	0.14
M2210N3	SINGLE AXIS TORQUE LOADCELL D62MM, T150NM	NA	NA	NA	150	62	7	12	0.14
M2210N4	SINGLE AXIS TORQUE LOADCELL D62MM, T50NM	NA	NA	NA	50	62	7	12	0.14
M2210P	SINGLE AXIS TORQUE LOADCELL D146MM, T250NM	NA	NA	NA	250	146	34	22	0.38
M2210R	SINGLE AXIS TORQUE LOADCELL D104MM, T150NM	NA	NA	NA	150	104	25	16	0.20
M2210S	SINGLE AXIS TORQUE LOADCELL D41MM, T40NM	NA	NA	NA	40	41	7	11	0.05
M2210T	SINGLE AXIS TORQUE LOADCELL D103MM, T330NM	NA	NA	NA	330	103	6	16	0.14
M2210U	SINGLE AXIS TORQUE LOADCELL D103MM, T150NM	NA	NA	NA	150	103	5	19	0.14
M2210V	SINGLE AXIS TORQUE LOADCELL D101MM, T150NM	NA	NA	NA	150	101	13.25	16.4	0.10
M2210V1	TORQUE SENSOR D101MM T70NM	NA	NA	NA	70	101	6	16	0.1
M2210W	SINGLE AXIS TORQUE LOADCELL D66MM, T50NM	NA	NA	NA	50	66	7	19	0.12
M2210Y	SINGLE AXIS TORQUE LOADCELL D61MM, T50NM	NA	NA	NA	50	61	8.5	13	0.12
M2211A	SINGLE AXIS TORQUE LOADCELL D82MM, T150NM, HIGH BENDING STIFFNESS	NA	NA	NA	150	82	22	26	0.26
M2211B	SINGLE AXIS TORQUE LOADCELL D110MM, T250NM	NA	NA	NA	250	110	22	37	0.39
M2211D	SINGLE AXIS TORQUE LOADCELL D53.5MM, T50NM, FOR LHD-14	NA	NA	NA	50	53.5	11.5	12	0.12
M2211D1	SINGLE AXIS TORQUE LOADCELL D53.5MM, T50NM, LIGHT WEIGHT, FOR LHD-14	NA	NA	NA	50	53.5	11.5	12	0.04
M2211G	SINGLE AXIS TORQUE LOADCELL D45MM, T10NM	NA	NA	NA	10	45	6	13	0.03
M2211H	SINGLE AXIS TORQUE LOADCELL D63MM, T50NM, OIL SEAL	NA	NA	NA	50	63	12	11	0.04
M2211J	SINGLE AXIS TORQUE LOADCELL D118MM, T250NM	NA	NA	NA	250	118	13	44	0.69
M2211M1	SINGLE AXIS TORQUE LOADCELL D50MM T40NM	NA	NA	NA	40	50	8.2	11	0.07
M2211K	SINGLE AXIS TORQUE LOADCELL D72MM, T50NM, OIL SEAL	NA	NA	NA	50	72	12	*	0.32
M2211P1	SINGLE AXIS TORQUE LOADCEL D70MM T140NM	NA	NA	NA	140	70	10.2	16	0.19
M2211Q1	SINGLE AXIS TORQUE LOADCEL D85MM, T250NM, DUAL CHANNEL	NA	NA	NA	250	85	10.2	21	0.28
M2211N2	SINGLE AXIS TORQUE LOADCELL D60MM T80NM	NA	NA	NA	80	60	8.2	11	0.10
M2211T1	SINGLE AXIS TORQUE LOADCEL D86MM, T200NM	NA	NA	NA	200	86	8	*	0.30
M2211T2	SINGLE AXIS TORQUE LOADCEL D86MM, T100NM	NA	NA	NA	100	86	8	*	0.30
M2212A	SINGLE AXIS TORQUE LOADCELL D95MM, T150NM	NA	NA	NA	150	95	7	20	0.18
M2212C	SINGLE AXIS TORQUE LOADCELL D88MM, T250NM	NA	NA	NA	250	88	8	26	0.3
M2212D	SINGLE AXIS TORQUE LOADCELL D118MM, T150NM	NA	NA	NA	150	118	12.4	22	0.57
M2211G1	TORQUE SENSOR D45MM T10NM	NA	NA	NA	10	45	6	*	0.03
M2211M	TORQUE SENSOR D50MM T40NM DUAL CHANNEL	NA	NA	NA	40	50	8.2	11	0.07
M2211V1	TORQUE SENSOR D71MM T100NM	NA	NA	NA	100	71	8	19	0.15
M2211V2	TORQUE SENSOR D71MM T50NM	NA	NA	NA	50	71	8	19	0.13
M2211V6	TORQUE SENSOR D69MM T100NM	NA	NA	NA	100	69	8.5	14	0.15
M2211Z1	TORQUE SENSOR D61MM T150NM	NA	NA	NA	150	61	8	*	0.15
M2211Z2	TORQUE SENSOR D85MM T300NM	NA	NA	NA	300	85	8	35	0.38
M2212A1	TORQUE SENSOR D95MM T150NM	NA	NA	NA	150	95	7	20	0.18
M2212G1	TORQUE SENSOR D96MM T400NM	NA	NA	NA	400	96	10	20	0.38
M2212G2	TORQUE SENSOR D86MM T200NM	NA	NA	NA	200	86	10	24	0.3
M2212G3	TORQUE SENSOR D64MM T80NM	NA	NA	NA	80	64	13	13	0.15
M2212L	TORQUE SENSOR D67MM T250NM	NA	NA	NA	250	67	16	*	0.27
