| 产品特性：力控 | 品牌：lireach | 型号：LC-2100 |
| 传感器类型：特殊力传感器 | 工作力：定制 | 精度：非线性 迟滞小于0.5% F.S |
| 输出类型： 485 以太网 422 | 安装类型：法兰 |

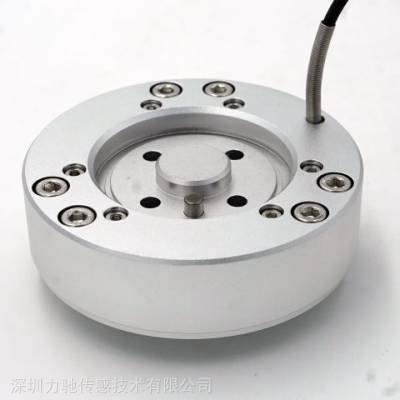

lireach生产特殊的单轴力传感器和多轴力传感器。尽管某些型号量程很小，但却具有很强的抗过载能力，在工业现场使用更加放心。多个型号为ABB定制，可直接配ABB机器人。
| 型号 | 描述 | 量程范围(N/Nm) | 尺寸(mm) | 重量 (kg) | |||||
| FX,FY | FZ | MX,MY | MZ | OD | Height | ID | |||
| M2106A | SINGLE AXIS TOUCH LOADCELL WITH MECHANICAL OVERLOAD STOP | NA | 5 | NA | NA | 14 | 8.5 | 47 | 0.01 |
| M2106B | SINGLE AXIS TOUCH LOADCELL WITH MECHANICAL OVERLOAD STOP ,10N | NA | 10 | NA | NA | 14 | 8.5 | 47 | 0.01 |
| M2108 | SINGLE AXIS LOADCELL 100N WITH OVERLOAD PROTECT 10N | NA | 100 | NA | NA | DLA 89 | * | 28 | 0.24 |
| M2108B | SINGLE AXIS LOADCELL 100N WITH OVERLOAD PROTECT 10N | NA | 100 | NA | NA | 89 | 27 | * | 0.24 |
| M2110B | SINGLE AXIS TOUCH LOADCELL, 5N WITH MECHANICAL OVERLOAD STOP | NA | 5 | NA | NA | 60 | 11.2 | 70 | 0.13 |
| M2112B | SINGLE AXIS LOADCELL 200N WITH OVERLOAD PROTECT 10N | NA | 200 | NA | NA | DIA 89 | * | 27 | 0.24 |
| M2112B1 | SINGLE AXIS LOADCELL 200N WITH OVERLOAD PROTECT | NA | 200 | NA | NA | 89 | 27 | * | 0.24 |
| M2125 | SINGLE AXIS FORCE SENSOR D21MM F4500N | NA | 4500 | NA | NA | DIA21 | * | 8.9 | 0.15 |
| M3619A | UNIAXIAL LOADCELL 12000N | NA | 12000 | NA | NA | DIA24 | * | 55 | 0.10 |
| M3619B | UNIAXIAL LOADCELL 40kN | NA | 40000 | NA | NA | DIA50 | * | 100 | 0.58 |
| M3619C | UNIAXIAL LOADCELL 80kN | NA | 80000 | NA | NA | DIA50 | * | 100 | 0.58 |
| M3619D | UNIAXIAL LOADCELL 80kN | NA | 100000 | NA | NA | DIA50 | * | 100 | 0.58 |
| M3621P | UNIAXIAL LOADCELL WITH AMPLIFIER D45MM F5000N | NA | 5000 | NA | NA | DIA45 | * | 21 | 0.17 |
| M3624A | UNIAXIAL LOADCELL 13000N | NA | 13000 | NA | NA | DIA25 | * | 43 | 0.10 |
| M3604A | SIX AXIS SHOE LOAD CELL , COUPLED 1500N, AI- LEFT, A2-RIGHT | 800 | 1600 | 200 | 100 | 112 | 275 | 15 | 0.86 |
| M4312B | SIX AXIS LOADCELL, COUPLED 8MM THICK, F80N | 80 | 80 | 1.2 | 1.2 | 36.5 | 30 | 8 | 0.038 |
| M4312B1 | SIX AXIS LOADCELL, COUPLED 10MM THICK, F80N | 80 | 80 | 1.2 | 1.2 | 47.1 | 40 | 10 | 0.038 |
